iDste
Smart Electronic Clock LC-05
- -Display resolution: 2560*1080
- -Supports POE/DC12V/4A power supply
- -Onboard integrated Wi-Fi + BT dual-band module, with internal support for two 2W stereo speakers
- -Supports automatic dlate and time calibration via NTP or proprietary protocol
Key Features
Exam Countdown Function
The device features an exam countdown mode, synchronized with the system platform. It supports countdowns for major exams. Users can configure the start and end times for each countdown mode.
The smart clock can play preset graphic tasks from the system platform either on a schedule or manually. It supports background images with a resolution of 2560*1080, allows setting the rotation interval, and can display up to 9 pages in a slideshow.
The device can play preset notification tasks from the system platform on a schedule or manually. It supports custom notification titles and content, with the notification text capable of scrolling playback.
Equipped with a 1 TOPS NPU, it incorporates built-in algorithms for face detection, face recognition, and AI-powered people counting. By working in synergy with a PTZ camera and the system platform, it enables features like contactless attendance tracking and population statistics.
The integrated Text-to-Speech (TTS) algorithm provides voice broadcast and reminder services, such as hourly chimes and the audible reading of notifications.
Specificatons
| Appearance | Color | Black | |||||||||
| Appearance design | Ultra Slim light design | ||||||||||
| Housing Material | Aluminum Alloy and Sheet Metal | ||||||||||
| Solution | Chipset | RK3568 | |||||||||
| Parameter | Resolution | 2560*1080 | |||||||||
| Operating System | Android12 | ||||||||||
| Screen Size | 23.3in | ||||||||||
| Aspect ratio | 21:9 | ||||||||||
| Backlight type | TFT LCD | ||||||||||

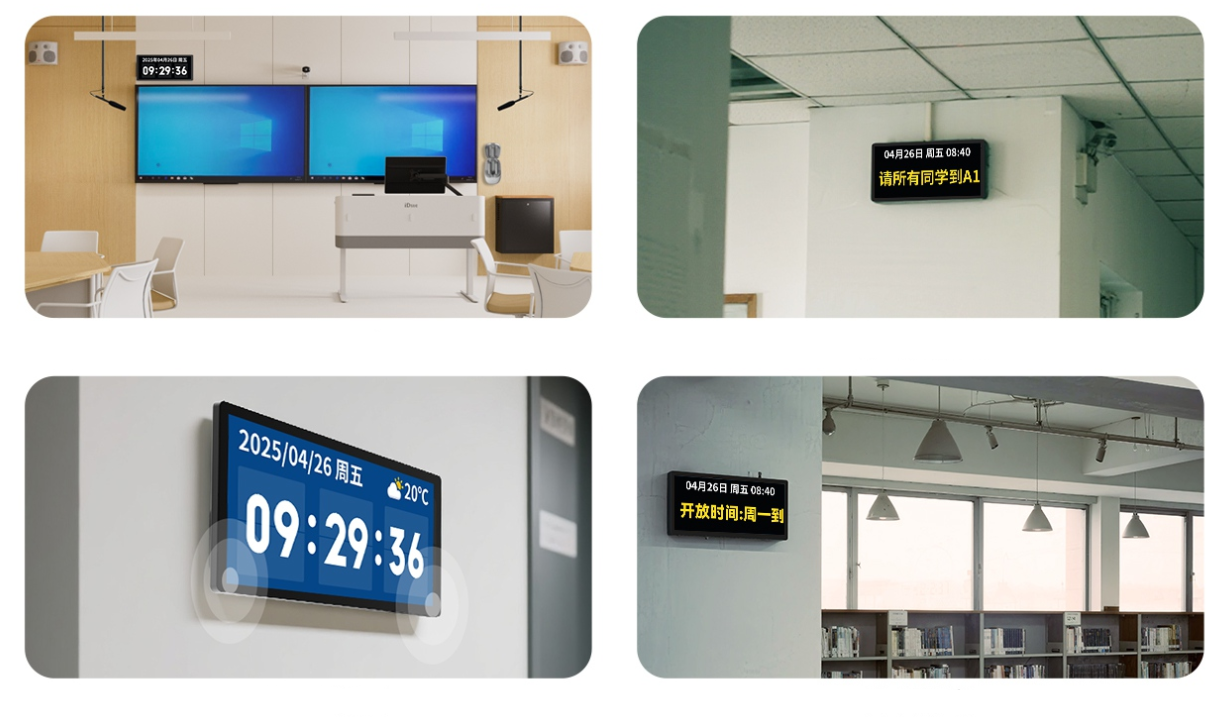

| Applicable Scene | Classrooms, public spaces, living rooms, etc | ||||||||||
| Horizontal Viewing Angle | R/L 90/90 | ||||||||||
| Brightness | ≥250nits | ||||||||||
| Number of colours | 16.7M | ||||||||||
| Temperature and Humidity Sensor | 30 | ||||||||||
| Process | Industrial Mould Precision Injection Moulding | ||||||||||
| RAM | 4GB | ||||||||||
| Memor | 32GB | ||||||||||
| Interface | DC12V | 1 | |||||||||
| RJ45 | 1 | ||||||||||
| USB | 1 | ||||||||||
| Others | Certificates | CE,ROSH | |||||||||
| Power input | POE/DC12V/4A | ||||||||||
| Language | Chinese, English | ||||||||||
