Intelligent Fusion Terminal NC-04P
-2*100W amplifier, 3.5mm Stereo Jack 3*In 3*Out
-4*4 HDMI(1.4B) 4k@30Hz Seamless Matrix(4*In 6*Out), 1*HDBaseT, KVM 2*In 4*Out
-5*1000M LAN(VLAN) with one POE
-2*48V Phantom power supply, 5*RS232, 2*RS485, 2*USB, 2*GPIO, 1*Dry Contact
-Computer module(i5/8G/512G)
-Recording hard disk(1TB)
-6TOPS AI computing for AI attendance & maintenance
Key Features
Live Streaming
Integrated with audio & video en/decoding module, it can stream real-time classroom footage to other classrooms. Students can watch the live broadcast in classrooms or access learning from any location via any terminal like phone and computer.
Class Recording
With recording module, teachers can start to record the course with one-tap one the control panel. The recording files can be storage in the local or cloud server.
Automatic Broadcast
Administrator can schedule a task to broadcast the specific information to the chosen classrooms. Through the serial ports, the devices will be turned on/off automatically without manual operation.
Timely Power Control
Each device can be set to power on/off on a specific time. It can be scheduled according to the usage habits of different classrooms for energy saving.
Specifications
| Catagory | Description | Parameter |
| Hardware Design | Operating System | Android |
| Dimensions | 1U 440mmx290mmx50mm | |
| Power Input | AC220V±10%50Hz/60Hz | |
| IoT | Integrated 2.4G Wireless Gateway | |
| Audio | Input | 3.5mm Stereo Jack(x3), supporting wireless microphone(x1) |
| 48V Phantom Power Microphone | ||
| Output | 3.5mm Stereo Jack(x3) | |
| 2*100W Digital Power Amplifier | ||
| Video | Input | HDMI1.4B(x4) |
| Output | HDMI1.4B(x5); HDBaseT2.0(x1); Expandable HDMI1.4B(x1) for PC | |
| Reverse Control | In(x1) Out(x4) KVM | |
| Communication Ports | Serial Ports | RS232(x5); RS485(x2); GPIO(x2); Dry Contact(x1) |
| USB3.0(x2) | ||
| Ethernet | 100/1000M RJ-45(x5), one with PoE; VLAN support | |
| Other Functions | Built-in Industrial Computer | i5/8GB RAM/512GB SSD |
| Built-in Recording Hard Disk | 1TB Storage | |
| Built-in DSP | Yes | |
| Digital Audio Encoding and Decoding | Yes | |
| HD Video Encoding and Decoding | Yes | |
| Live Streaming | Yes | |
| AI Computing | 6TOPS |

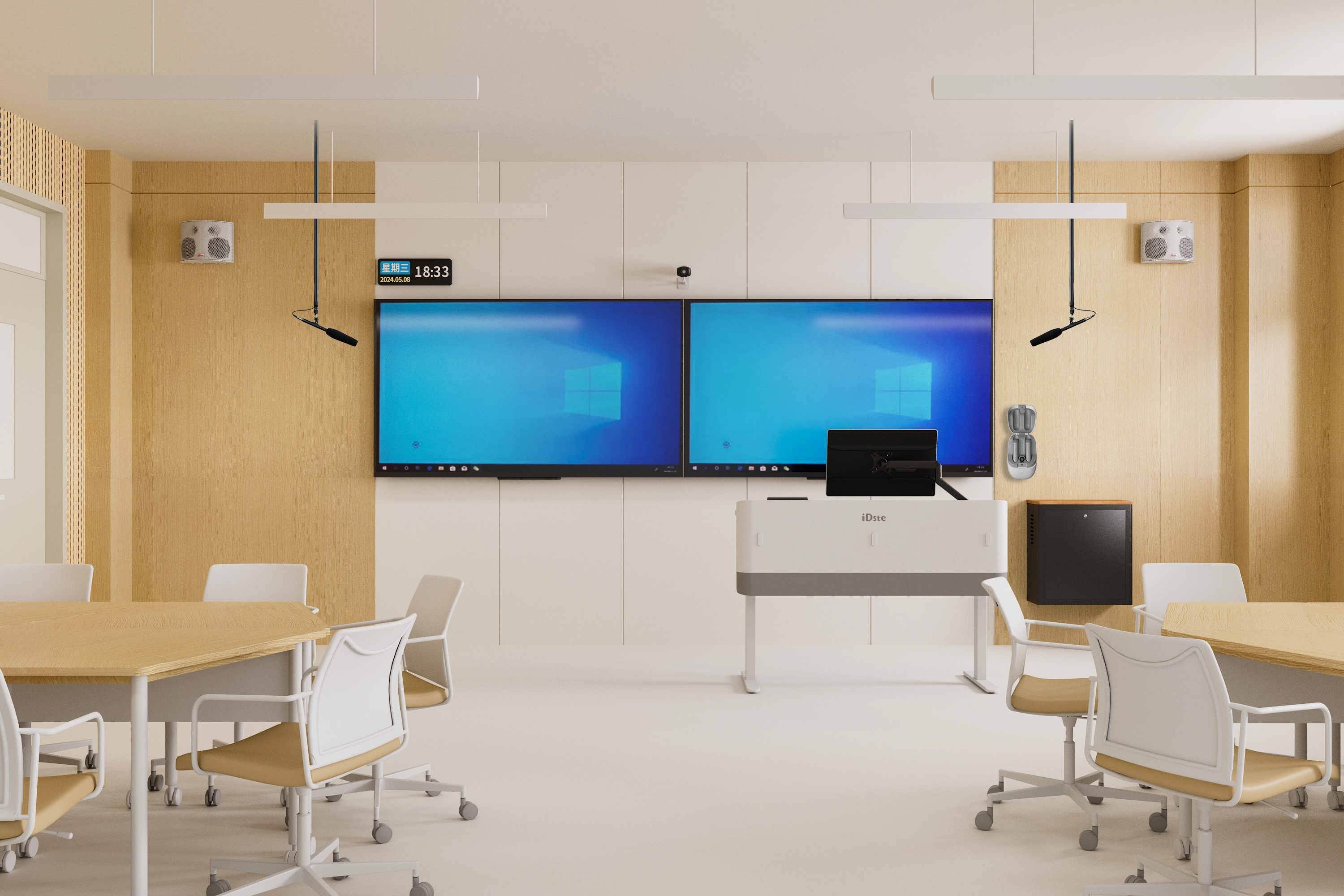

Application Case
Topology
