Intelligent Fusion Terminal NC-02HP
stars, based on ( 0 ) review
-2*80W amplifier, 3.5mm Stereo Jack 3*In 3*Out
-4*4 HDMI(1.4B) 4k@30P Seamless Matrix(4*in 6*out), KVM 1*In 4*Out
-4*1000M LAN
-48V Phantom power supply, 4*RS232, 1*RS485, 2*GPIO, 1*Dry Contact
iDste
Key Features
Automatic Broadcast
Administrator can schedule a task to broadcast the specific information to the chosen classrooms. Through the serial ports, the devices will be turned on/off automatically without manual operation.
Timely Power Control
Each device can be set to power on/off on a specific time. It can be scheduled according to the usage habits of different classrooms for energy saving.
Specifications
| Catagory | Description | Parameter |
| Hardware Design | Operating System | Linux |
| Dimensions | 1U 439mmx256mmx50mm | |
| Power Input | AC 220V±10%50Hz/60Hz | |
| IoT | Needs an extra 2.4G Wireless Gateway | |
| Audio | Input | 3.5mm Stereo Jack(x3), supporting wireless microphone(x1) |
| 48V Phantom Power Microphone | ||
| Output | 3.5mm Stereo Jack(x3) | |
| 2*80W Digital Power Amplifier | ||
| Video | Input | HDMI1.4B(x4) |
| Output | HDMI1.4B(x6) | |
| Reverse Control | In(x1) Out(x4) KVM | |
| Communication Ports | Serial Ports | RS232(x4); RS485(x1); GPIO(x2); Dry Contact(x1) |
| Ethernet | 100/1000M RJ-45(x4) | |
| Other Functions | Built-in Industrial Computer | None |
| Built-in Recording Module | None | |
| Built-in DSP | Yes | |
| Digital Audio Encoding and Decoding | Yes | |
| HD Video Encoding and Decoding | Yes | |
| Live Streaming | None | |
| AI Computing | None |

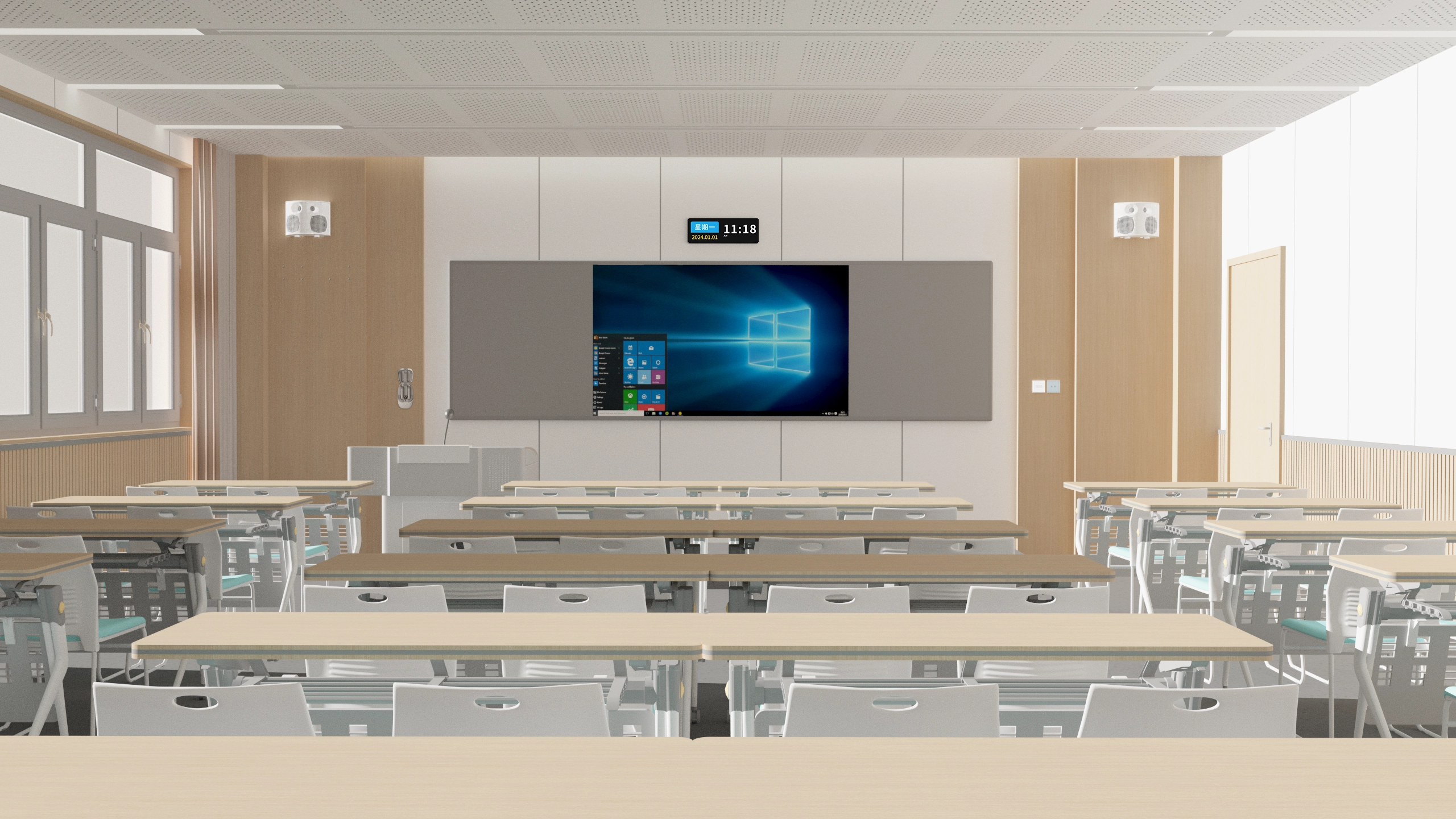

Application Case
Topology
