Intelligent Fusion Terminal MC-MINI
-Audio: 3.5mm Stereo Input ×1, 48V Phantom Mic Output ×1
-Video: HDMI Input ×2, HDMI Output ×2 (KVM reverse control)
-Control Ports: RS232 ×3, RS485 ×1, GPIO ×1
-Data Ports: USB3.0 ×2, UAC ×1, UVC ×1
-Networking: Ethernet, IoT expansion module ×1
-Built-in: DSP, digital audio codec, HD video codec, live streaming
Key Features
Compact & Highly Integrated
Lightweight and compact, this device features an 8.8-inch industrial-grade touchscreen and integrates an 8-in-1 core module, including network control center, 4K matrix, KVM, Gigabit switch, WiFi wireless screen mirroring, DSP, power amplifier, and codec module. It provides rich audio/video interfaces and capabilities, supports direct 5G wireless microphone connection, and is equipped with a built-in camera and microphone.
Cloud Control
It is widely compatible with educational audio-visual systems, loT devices, and smart power distribution equipment of the same brand, supporting scenario customization, live streaming, recording and playback control, intelligent audio and video distribution, and energy consumption monitoring. Integrated with the CEOC platform, it allows global management via mobile or computer
anytime, anywhere.
Specifications
| Catagory | Description | Parameter |
| Hardware Design | Operating System | Android |
| Power Input | AC220V±10%50Hz/60Hz | |
| IoT | KIT-GW(x1);Can connect externalloT modules | |
| Audio | Input | 3.5mm Stereo Jack(x1) |
| 48V Phantom Power Microphone | ||
| Output | 3.5mm StereoJack(x1) | |
| Video | Input | HDMI(x2) |
| Output | HDMI(×2) | |
| Reverse Control | In(x2)Out(×2)KVM | |
| Communication Ports | Serial Ports | RS232(x3);RS485(x1);GPIO(x1) |
| USB3.0(x2);UAC(x1);UVC(x1) | ||
| Ethernet | 100/1000MRJ-45(x4) | |
| Other Functions | Built-in Industrial Computer | None |
| Built-in Recording Module | None | |
| Built-in DSP | Yes | |
| Digital Audio Encoding and Decoding | Yes | |
| HDVideo Encoding and Decoding | Yes | |
| Live Streaming | Yes |

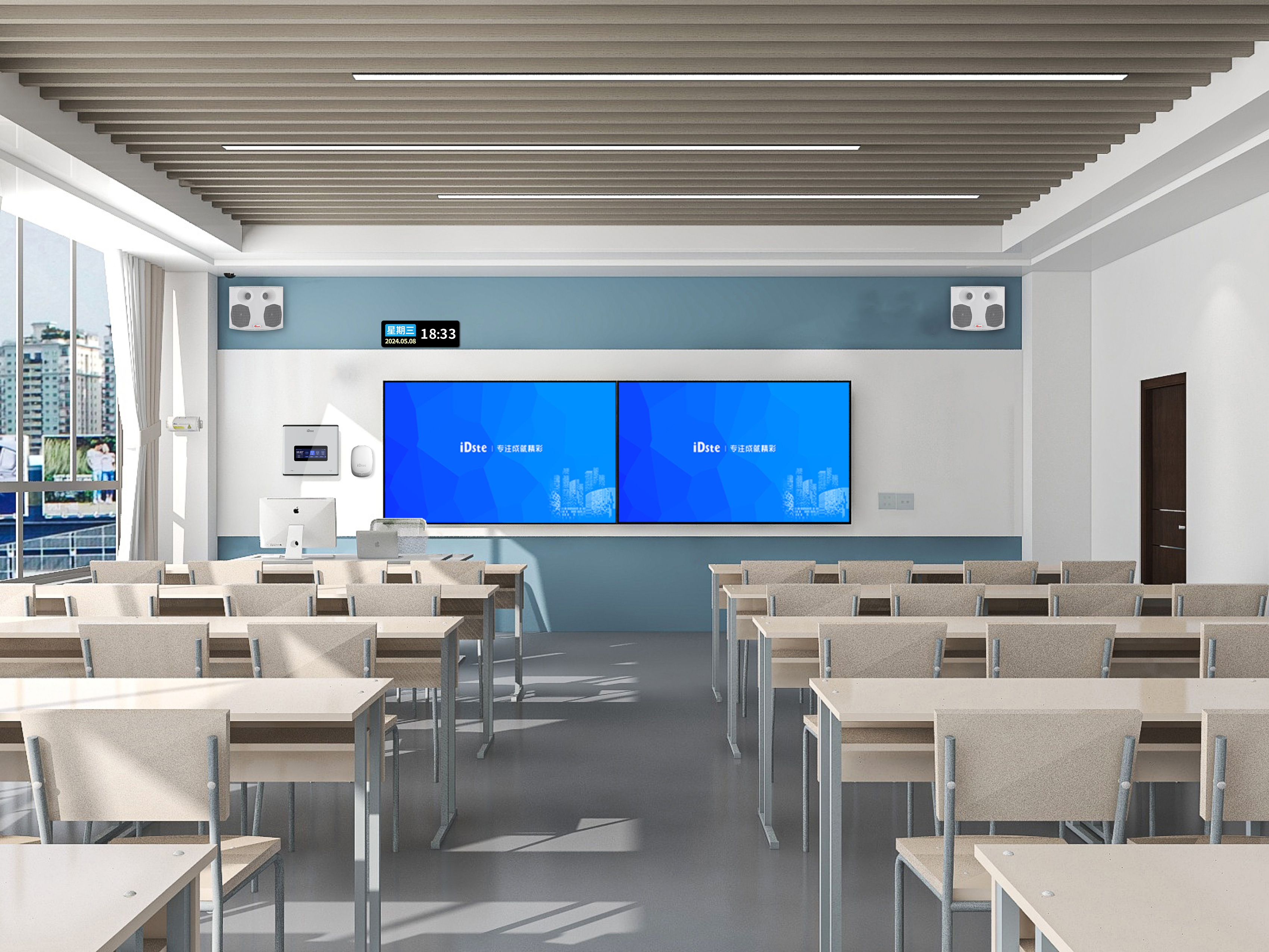

Application Case

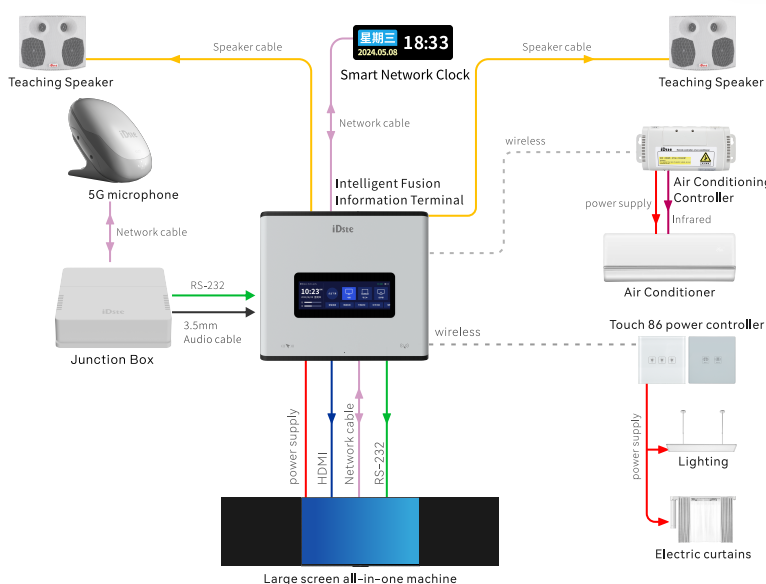

Topology
