iDste
Digital Room Sign RB-10
-10.1-inch OLED sleek display, 32GB memory
-Industrial ABS integrated design
-Customizable UI & information display
-IC card and face recognition support
-Smart management: inspection, intercom, access, attendance, and reservation
-DC 12V/3A or POE
Key Features
Features
RB-10 integrates multiple functional modules, including attendance, timetable preview, space reservation, access control, space viewing, weather and notification display, and IP calling. It supports intelligent management through a centralized platform.
Sleek Display
Integrated industrial ABS design with 10.1-inch OLED screen.
Customizable Interface
Personalized UI style and info display categories to fit needs.
Easy Identification
Supports IC card and face recognition for smooth identity authentication.
Smart Management
Enables class inspection, IP intercom, access control, attendance, course info, and classroom reservation.
Specifications
| Description | Parameter | Description | Parameter |
| Housing Material | Industrial ABS | Microphone | Hi-Fi microphone |
| Resolution | 1920×1200 | Touch Points | 10-point touch |
| Colour Classification | Black | Backlight Type | OLED |
| Operating System | Android12 | Response Speed | 10ms |
| Screen Type | Capacitive Touch Screen | Horizontal Viewing Angle | R/L 85/85 |
| Screen Ratio | 16:10 | Vertical Viewing Angle | U/D 85/85 |
| Screen Size | 10.1 inches | Number of colours | 16M |
| IC Card | Swipe | Process | Industrial Moulds Precision Injection Moulding |
| Power | Less than 10W (static desktop) | Brightness | 400nits |
| Applicable Scene | Information dissemination, Campus class sign, Conference door sign | Temperature and Humidity Sensor | CPU temperature sensor |
| Product Size | 244.5mm×178.7mm×30.5mm | Camera | 2M pixels |
| With or Without Speaker | Built-in speaker 2W*2 | Wi-Fi | None |
| Interface | DC 12V*1 / RJ45*1 / USB2.0*1 HDMI in*1 / 3.5mm line in*1 3.5mm line out*1 / DC 12V1A out*1 GPIO*1 SPDT*1 | Power Adapter | 12V/3A |
| RAM | 4GB | Operating Temperature | 0°C--40°C |
| Memory | 32GB | LED Light Bar | LED Strip RGB |
| Power supply | DC Power Input/POE | Support customisation | Start-up Logo, Start-up Animation Desktop wallpaper, personalised packaging Running memory and storage capacity |

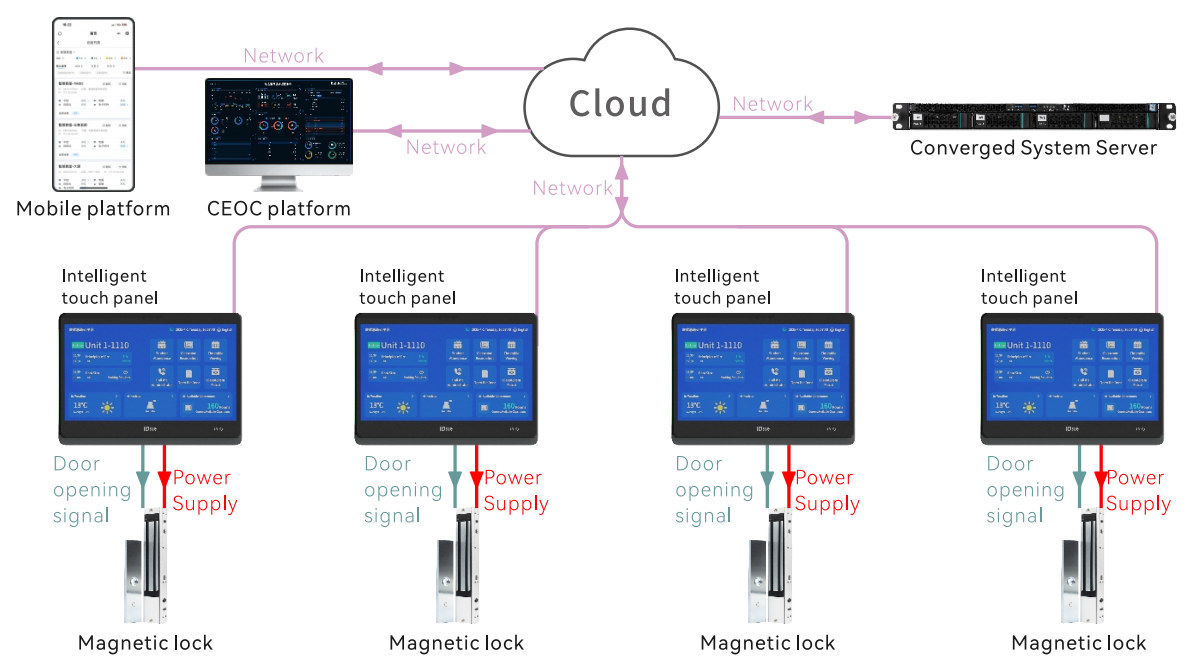

Topology
