iDste
Control Panel CP-PRO
-23.8" TFT LCD display, 1920×1080 resolution, 16:9 ratio, 250nits brightness, 16.7M colours
-10-point capacitive touch, 89/89 wide viewing angle (H&V)
-5MP camera with 10ms face verification speed
-Interfaces: USB2.0 ×4
-Built-in 3W×2 loudspeakers & standard microphone
-Power supply: DC 12V/4A or POE, static power consumption <30W
-Operating temperature 0°C–40°C, humidity 20–80%RH
Key Features
Android-based System
Support open APl interface, UI customization, signal switching, volume adjustment, radar sending, 4*extra USB.
Built-in IoT Gateway
Integrated with IoT gateway, it supports control of 2*wireless clock and 30* IoT devices from the same brand.
23.8-inch High-definition Touch Screen
23.8-inch 1920x1080 high-definition touchscreen clearly shows the content. 250 nits brightness.
HDBaseT 2.0 Creates Concise Desktop
Only one cable will transmit the HMDI, power, USB, IoT signals. It will simplify the cable arrangement on the podium.
Multi-brand Recording/Live Streaming Control
Through the CEOC platform, it can preview and control the class recording and live-streaming. Support control of a third party’s device.
Multiple Authorization Methods
Face recognition through the 2*built-in 2MP camera, NFC, IC, QR code.
Specifications
| Catagory | Parameter | |
| Display | Horizontal Viewing Angle | R/L89/89 |
| Vertical Viewing Angle | U/D 89/89 | |
| Screen Size | 23.8inch | |
| Resolution | 1920x1080 | |
| Screen Ratio | 16:09 | |
| Backlight | TFT LCD | |
| Brightness | 250nits | |
| Number of Colours | 16.7M | |
| Camera | Lens | 5M pixels |
| Face Verification Time | 10ms | |
| Touch | Touch Type | Capacitive Touch |
| Touch Point | 10 | |
| Interface | Data Transmission Interface | USB2.0*4 |
| Power | Power Consumption | Less than 30W(static desktop) |
| Working Environment | Operating Temperature | 0℃--40℃ |
| Operating Humidity | 20~80%RH | |
| General | Power Supply | DC Power Input/POE |
| Power Adapter | 12V/4A | |
| Internal Function | Loudspeaker | 3W*2 |
| Microphone | Standard Microphone | |

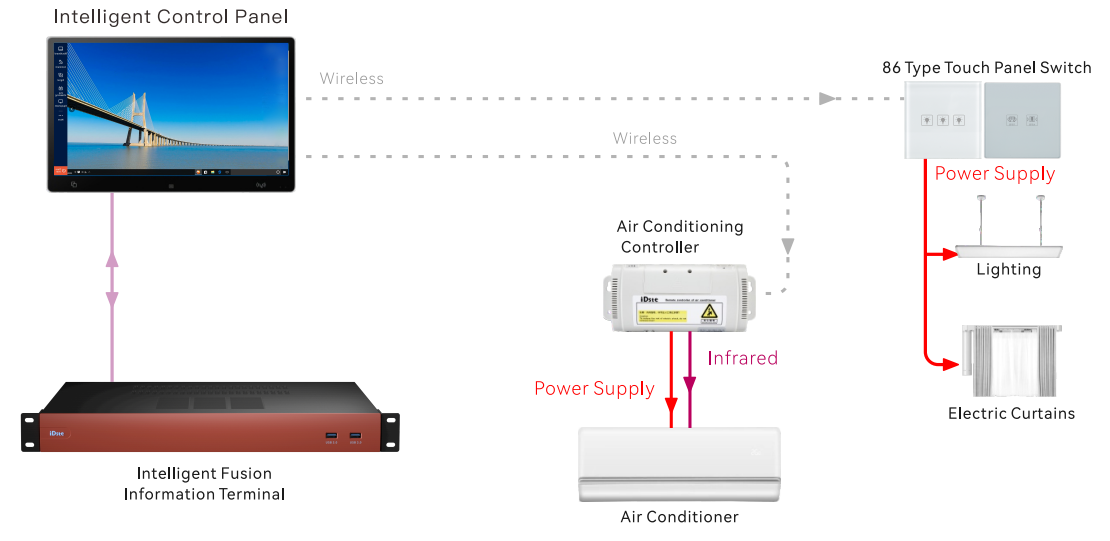

Connection
