Control Panel CP-MAX
stars, based on ( 0 ) review
-29-inch HD Touch Screen, 2560×1060 Resolution
-10-point Capacitive Touch, ≤21ms Ultra-low Latency
-HDBaseT Input, Camera Scanning & Screen Writing
-Remote IP Intercom, Voice Monitoring & One-touch Repair
-IC Card Swipe, QR Code & Facial Recognition Power-on
-Wireless IoT & Audio Decoding
-Active Capacitive Stylus, ≥4096 Pressure Levels, 80+ Hours
-LAN×1 & USB2.0×4, ≤40W Low Power Consumption
iDste
Key Features
Smart Classroom Integration
Built‑in HDBaseT input, camera scanning and screen writing. Supports remote IP intercom, voice monitoring and one‑touch repair reporting for efficient classroom management.
Multi‑Way Access & Power‑on
IC card swipe, QR code front/reverse scanning and facial recognition power‑on. Convenient and secure device access for education environments.
Professional Active Stylus
Anodized aluminum stylus, plug‑and‑play (no Bluetooth). ≥4096 pressure levels, tilted writing, anti‑tap function and 80+ hours battery life for natural writing experience.
Wireless IoT & Audio Decoding
Integrated wireless IoT connectivity and audio decoding. Enables control of lights, air conditioners, electric curtains and other smart devices in the classroom.
Specifications
| Category | Description | Remarks |
| Display | Horizontal Viewing Angle | L/R |
| Vertical Viewing Angle | Under | |
| Screen Size | 29 inch | |
| Resolution | 2560×1080 | |
| Screen Aspect Ratio | 21:09 | |
| Backlight Type | TFT LCD | |
| Brightness | 250 nits | |
| Number of Colours | 16.7M | |
| Touch | Touch Precision | 5M pixels |
| Touch Latency | 21ms | |
| Touch Type | Capacitive touch | |
| Touch Points | 10 points | |
| Interface | Network Interface | LAN×1 |
| Dual Transmission Interface | USB2.0×4 | |
| Power | Power Consumption | Less than 40W (static) |
| Environment | Operating Temperature | 0°C–40°C |
| Operating Humidity | 10–90%RH | |
| General | Power Supply | DC Power input PCE |
| Power Adapter | 12V 4A | |
| Internal Function | Speaker | 2W×2 |
| Microphone | Standard Microphone |

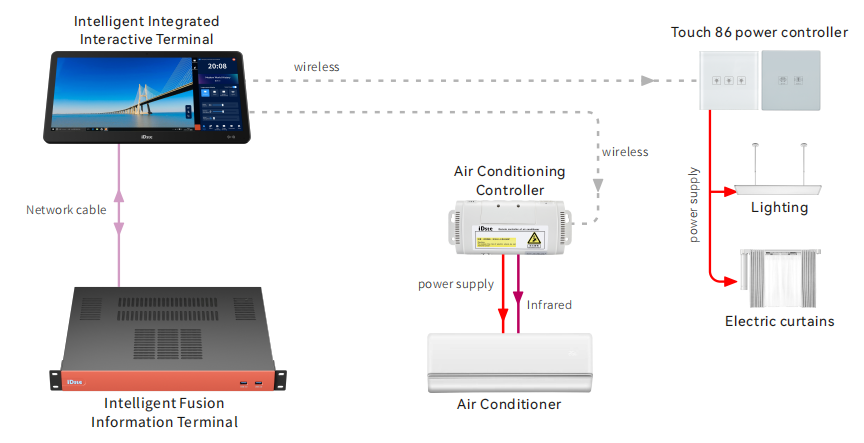

Topology
