Broadcast Terminal BC-11
-Digital Amplifier: 360W / 600W / 1000W optional (constant-voltage)
-Display & Control: 4.58" industrial touch screen + volume knob
-Audio I/O: 3 inputs (RCA/XLR/6.35mm MIC) / 3 outputs (XLR/RCA/3.5mm)
-Control Interfaces: RS232 ×1, RS485 ×1, USB 3.0 ×1
-Network: RJ-45 ×1 (Gigabit, supports broadcast decoding)
-Mounting & Power: 1U rack mount, AC220V±10% 50/60Hz
-OS & Playback: Android, supports WAV/MP3 via USB or network
Key Features
1. Powerful Broadcasting & Amplification
Built-in digital amplifier drives speakers directly – no extra equipment needed.
Delivers clear, powerful sound for classrooms, campuses, or industrial sites.
2. Flexible Audio Connectivity
Connect multiple audio sources: microphone, music player, or line input
Output to recording devices or external amplifiers as needed
3. Smart System Integration
RS232/RS485 ports allow automatic control of projectors, lights, or curtains during broadcasts
USB port for easy playback of local audio files (WAV/MP3)
4. Reliable & Space-Saving Design
1U rack-mountable – fits neatly into any equipment cabinet
Designed for 24/7 operation in schools, offices, and factories
Specifications
| Parameter Category | Details | Parameter Category | Details |
| Digital Audio Decoding | Supported | Audio Output | XLR single-channel balanced output interface(×1) |
| Operating System | Android | RCA stereo output interface(×1) | |
| Dimensions | 440mm×371mm×50mm | 3.5mm audio linear output interface(×1) | |
| Screen | 4.58-inch industrial touch screen | Audio Input | RCA stereo input interface(×1) |
| Digital Audio Amplifier | 600W digital constant-voltage amplifier | 6.35mm single-channel balanced MIC input interface(×1) | |
| Power Supply | AC220V±10%50Hz/60Hz | XLR single-channel balanced input interface(×1) | |
| Central Control Communication | USB 3.0(×1) | High-Voltage Output | Anti-loosening power plug(x×1) |
| Communication & Control Interfaces | RS232(×1) RS485(×1) | ||
| Ethernet Interface | RJ-45(x1) |

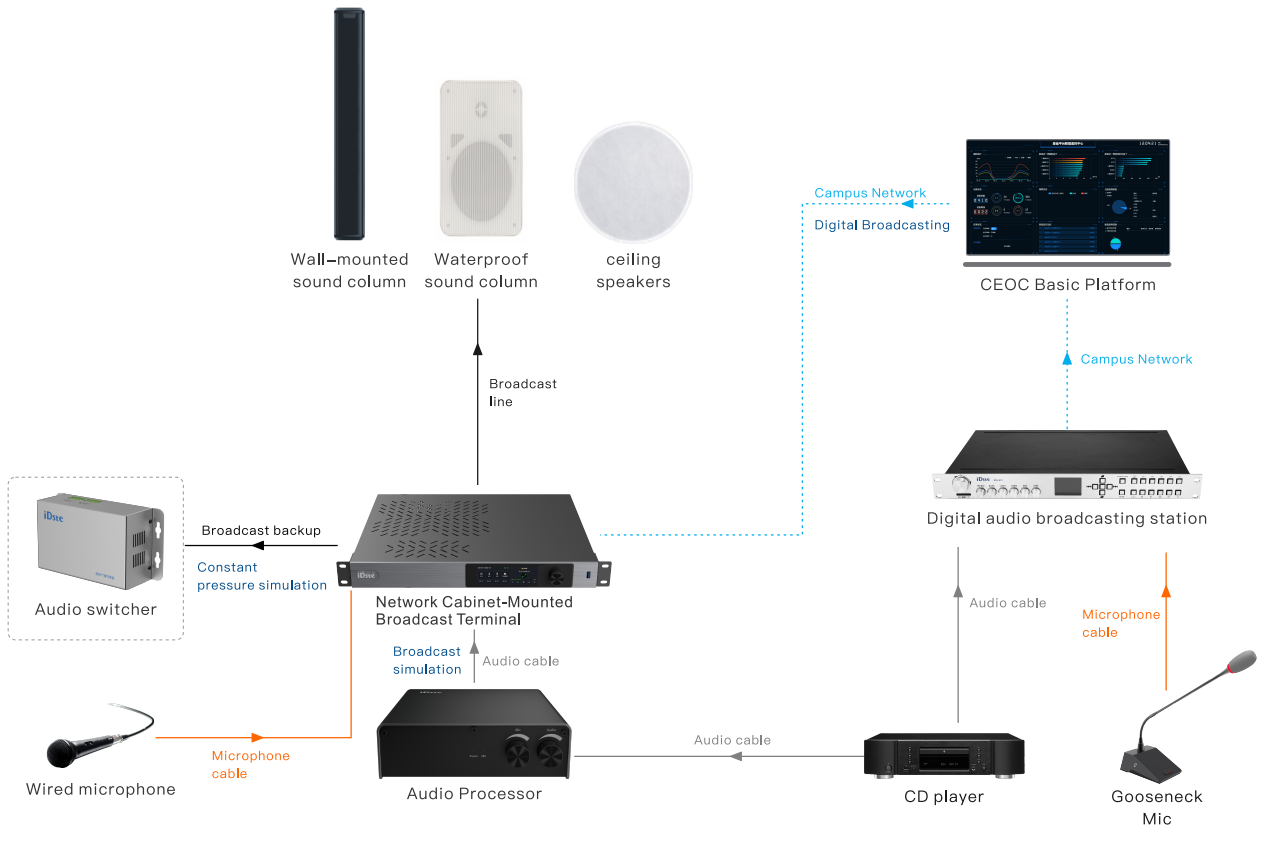

Topology
